Call Flow Design: A Practical Guide for Businesses

For decades, businesses have relied on Interactive Voice Response (IVR) systems — the familiar "press 1 for sales, press 2 for support" menus. These systems provided basic call routing but operated within rigid constraints: static menu trees, limited decision logic, and no awareness of individual caller context.

Call flow design represents the evolution beyond traditional IVR. Modern call flow architecture integrates conversational AI, real-time data access, dynamic routing logic, and intelligent escalation protocols to handle the operational challenge that basic phone menus cannot solve: capturing revenue from calls that arrive during client meetings, after business hours, or during peak volume periods.

A high-value prospect calls at 6 PM — traditional IVR routes them to voicemail, but cannot qualify their needs, capture critical information, or schedule a consultation. An urgent customer issue arises during a service call — basic phone routing sends them to a queue, but cannot detect the priority, verify details, or dispatch appropriate resources.

The difference between answering a call and capturing the opportunity requires systematic processes to route, qualify, and resolve each interaction consistently. Understanding how to build these processes starts with defining what call flow design actually encompasses.

What is call flow design?

Call flow design is the process of mapping and implementing structured pathways for inbound calls through a phone system. Unlike traditional IVR systems that simply present menu options, call flow design determines how calls are answered, qualified, routed, and resolved using an integrated combination of:

• Interactive voice response (IVR) menus: Automated systems that present callers with menu options and collect input through voice or keypad selections
• Automated messages: Pre-recorded greetings, hold messages, and informational announcements that provide consistent communication to callers
• Routing rules: Logic-based decision trees that direct calls to appropriate destinations based on caller input, time of day, or other predetermined criteria
• Escalation protocols: Predetermined pathways for moving calls from automated systems to human agents or from standard support to specialized teams when situations require additional expertise

A call flow defines each step from initial greeting through final resolution, including menu options, hold procedures, transfer logic, and data collection points.

Call flow design incorporates intelligent routing algorithms, CRM integrations, and AI-powered decision trees to ensure callers reach destinations efficiently.

The system captures information at each interaction point, applies business rules for prioritization, and maintains consistency across all customer touchpoints.

Call flows can range from simple single-menu systems for small businesses to complex multi-level architectures for enterprises handling thousands of daily interactions.

Key call flow mapping concepts

Modern call flow operates on a series of intelligent decision points that mirror your business logic. Each junction represents a moment where your specific expertise — whether it's qualifying a legal case, triaging an HVAC emergency, or identifying a high-value client — gets embedded into the system.

Critical control vocabulary includes:

• Qualification gates: Checkpoints ensuring complex intake processes are followed exactly, capturing all required information
• Escalation triggers: Automated detection of high-value opportunities requiring immediate human attention
• Compliance checkpoints: Standards maintenance for industry requirements like HIPAA or legal conflict checks
• Value recognition: Identification systems for VIP clients and high-revenue opportunities
• Routing priorities: Logic determining call distribution based on urgency, value, and resource availability

These concepts form the foundation for designing call flows that maintain consistent quality regardless of call volume or timing.

Why traditional call handling fails without systematic processes

Small businesses miss significant call volume, with 85% of unanswered calls never returned by customers, according to Quality Company Formations research. The more critical issue: Answered calls are frequently mishandled because systematic processes are absent. Without proper call flow design, problems scale proportionally with business growth:

• Small businesses (1-50 employees): Missing qualifying questions on valuable opportunities means the difference between growth and stagnation. Staff fails to ask about property square footage, affecting quote accuracy. Email addresses for follow-up marketing go uncaptured
• Mid-market companies (50-500 employees): Every mishandled call damages customer relationships and brand reputation. Inconsistent service across departments means marketing promises fail to match sales delivery, and customer service cannot maintain standards
• Enterprises (500+ employees): Inconsistent experiences break operational excellence across multiple locations. Successful processes in one office fail in another due to a lack of standardization. Different teams, time zones, and regions all handle calls differently

Benefits of optimized call flow design

When customers reach out, they require efficient issue resolution. A well-designed call flow transforms every phone interaction from a potential failure point into a revenue opportunity.

Optimized call flow delivers the following operational benefits:

• Reduced operational costs: AI handles routine calls at $95/month starting price, eliminating the need for full-time receptionist staff
• 24/7 availability: Continuous business accessibility regardless of traditional operating hours
• Improved customer satisfaction: 61% of consumers will pay at least 5% more for a better customer experience, according to Emplifi research
• Faster handle times: Clear processes eliminate confusion about next steps, reducing average handle time while maintaining quality
• Better lead qualification: Capture critical information upfront, ensuring only qualified leads reach your sales team
• Consistent brand experience: Every caller receives the same professional service regardless of time, day, or who's available
• Data-driven insights: Real-time visibility into conversion rates, call values, and customer patterns
• Scalability without complexity: Handle growing call volumes without proportional increases in staff or costs
• Protection from human error: Automated processes ensure critical questions are never missed

Smith.ai's analysis of telecommunications patterns across diverse industries reveals how proper call flow architecture impacts revenue conversion—transforming missed calls into captured opportunities.

Call flow design: 6 essential components

Modern call flow systems incorporate six essential components that work together to create smooth customer experiences while maintaining business standards. Each component serves a specific function in the overall architecture.

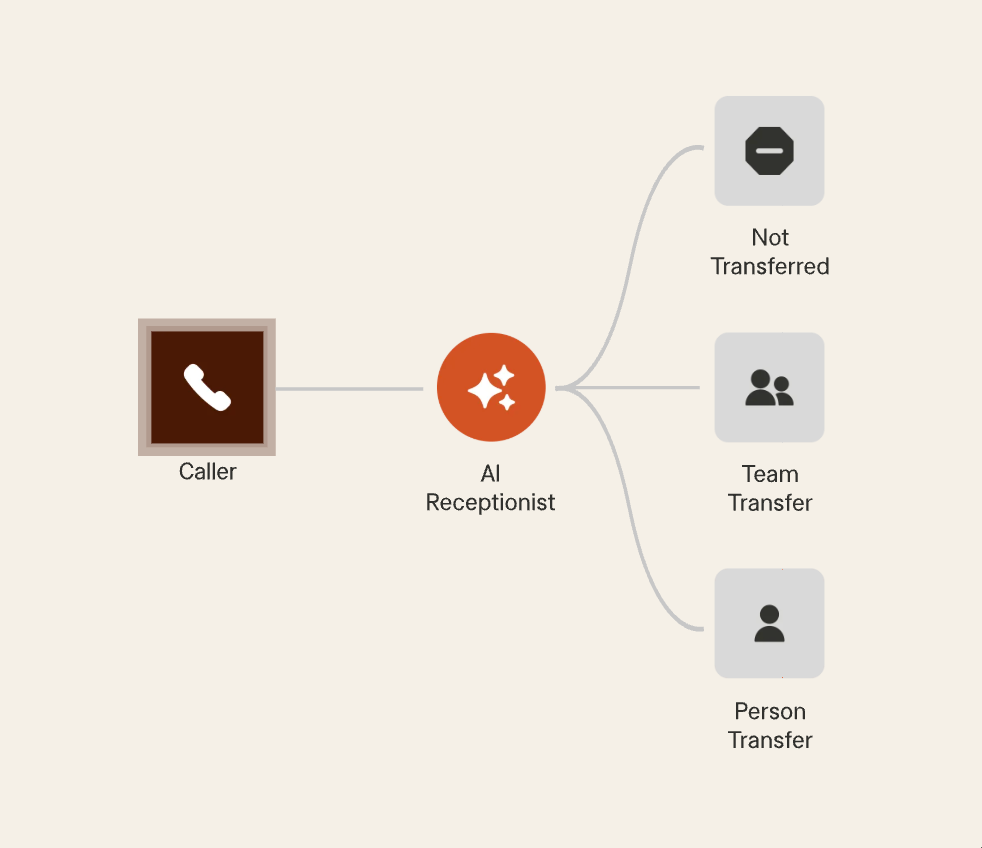

1. Call transfers and routing

The most fundamental call flow component determines how calls move through your system. Effective routing ensures callers reach the right destination without unnecessary transfers or delays.

• Direct transfers connect callers immediately to specific individuals or departments based on their initial selection or identified needs
• Time-based routing adjusts call destinations based on business hours, directing after-hours calls to voicemail, answering services, or on-call staff
• Skills-based routing matches callers with agents who have specific expertise, ensuring technical questions reach technical staff and sales inquiries reach sales teams
• Geographic routing directs calls based on service areas and location availability, connecting callers to the nearest or most appropriate regional office

Consider a regional HVAC company that routes emergency calls to on-call technicians based on zip code, while routing maintenance inquiries to the scheduling department during business hours and to an answering service after hours.

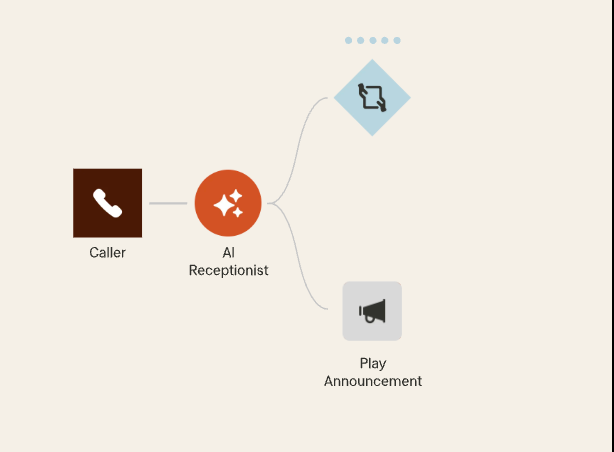

2. Messaging protocols

Certain information must be delivered exactly as written, word-for-word, without variation. Messaging protocols ensure compliance statements, legal disclaimers, or critical announcements play verbatim when specific conditions are met.

Law firms require precise attorney-client relationship disclaimers before discussing case details. Healthcare providers must deliver HIPAA privacy notices before collecting protected information. Financial services need specific regulatory disclosures before discussing account details.

Configure triggers based on caller type, specific questions asked, or call context to ensure required disclosures or announcements play at exactly the right moment in the conversation.

3. Conditional logic and branching

Call flows become powerful when they adapt based on caller responses and gathered information. Conditional logic creates dynamic pathways that change based on specific criteria.

• If-then routing creates decision trees where caller responses determine the next step. If a caller indicates emergency status, route immediately to available technicians. If they're calling for routine service, proceed to scheduling
• Value-based branching adjusts the call experience based on customer value or opportunity size. High-value clients or large projects receive different handling than routine inquiries.
• Compliance-based branching ensures regulatory requirements are met before proceeding. Verify service area coverage before collecting detailed information. Confirm insurance participation before booking appointments.

For example, a cleaning service might ask about property type (residential or commercial), then branch to different pricing structures and available service options based on that response.

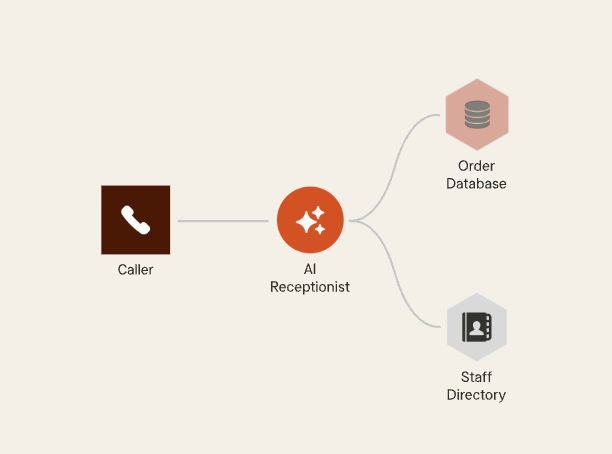

4. Data lookups

Call flows become intelligent when they access existing information about callers. Data lookups eliminate repetitive questions by pulling context from your business systems.

Callers need context-aware assistance. Someone asking about order status needs their order pulled up automatically. A caller requesting a specific staff member needs the system to know who's available and how to reach them. Without access to structured data — customer records, appointment schedules, staff directories, service areas — your call flow can only ask questions instead of providing answers.

Effective data lookups query information in real-time based on phone number, account number, or other identifiers. The system checks: Is this an existing customer? Do they have an open order? Are they in our service area? This information determines routing and personalization before anyone picks up.

‍

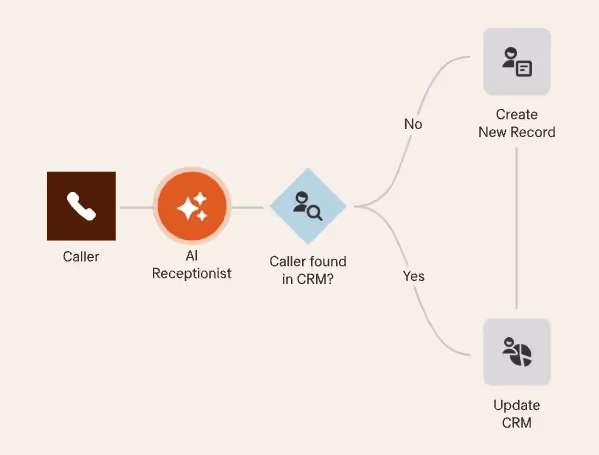

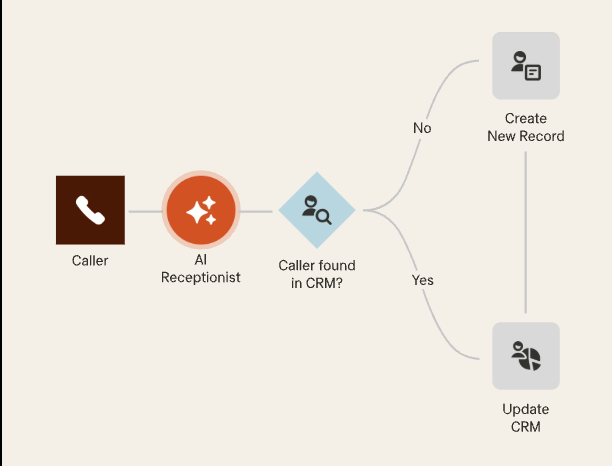

5. Integration with business systems

Modern call flows don't operate in isolation — they connect with CRM platforms, scheduling software, and other business tools to trigger actions automatically.

Integration enables your call flow to do more than route calls. When certain conditions are met, the system can create customer records, update contact information, log call details, or trigger workflows in connected software.

For example, configure your system to capture specific information from new leads — budget range, project timeline, preferred contact method — then automatically send that data to your CRM with appropriate tags. Existing customers calling for support can have tickets created automatically with relevant account context already attached.

These integrations work globally across your entire system or for specific caller types, ensuring consistent data capture and eliminating manual entry after each call.

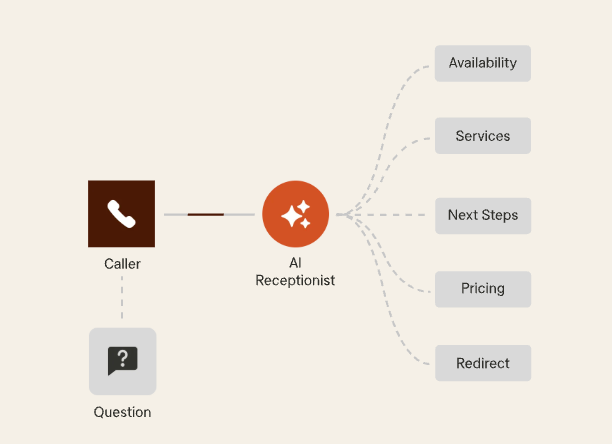

6. FAQ automation and self-service

Many callers have simple questions that don't require human assistance. Effective FAQ automation provides instant answers while freeing staff for complex inquiries.

Configure automated responses for common questions about:

• Business hours and locations
• Services offered and pricing ranges
• Appointment availability and booking
• Order status and tracking
• Return policies and procedures

Design FAQ flows to lead callers toward specific outcomes. When someone asks about availability, offer immediate appointment booking. When they inquire about services, guide them through qualification questions that determine fit.

The key is providing helpful information while identifying opportunities to convert inquiries into appointments, estimates, or next steps.

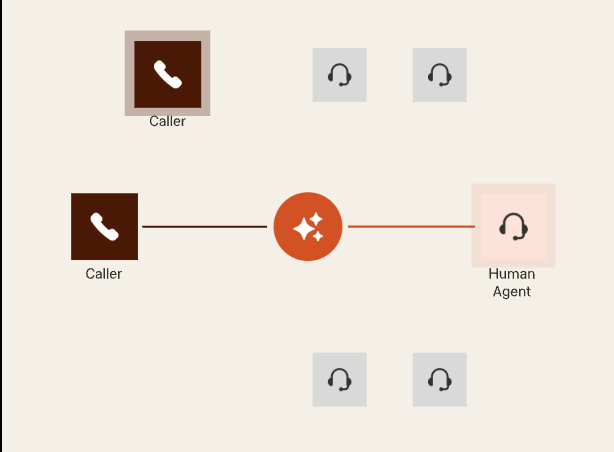

7. Escalation and human handoff

Even the most sophisticated automation has limits. Effective call flows recognize when human expertise is required and transition smoothly.

• Keyword-triggered escalation detects phrases indicating frustration, complexity, or high value ("I need to speak to someone," "this is urgent," "major project")
• Complexity-based escalation recognizes when collected information indicates a situation beyond automated handling
• Request-based escalation always provides a clear path to human assistance when callers specifically ask for it
• Value-based escalation prioritizes high-revenue opportunities or VIP clients for immediate human attention

The transition should be seamless — when routing to a human, provide them with all information already collected so the caller doesn't repeat themselves.

These six components work in concert to create call flows that handle complex business requirements while maintaining simplicity for callers.

How to design your call flow: Step-by-step process

Effective call flow design requires a methodical, process-focused approach. The following steps ensure nothing critical gets lost in translation from human expertise to automated systems.

Step 1: Define clear objectives

Determine what the call flow should accomplish. Routing customer service inquiries differs from handling sales calls or managing emergencies. Knowing the goal keeps the design focused and ensures the flow aligns with business objectives.

Walk through the flow from the caller's perspective to identify issues or missing steps. Simulating the process helps uncover bottlenecks or confusing elements. Additional team members should test the flow — fresh perspectives often identify overlooked problems.

Step 2: Document your current process

Record yourself handling different scenarios — price shoppers, emergency callers, high-value leads. Capture the golden standards that represent your expertise at its best. Note the questions you ask, the information you gather, and the judgment calls you make naturally during each interaction type.

Step 3: Identify failure points

Mark where processes fail without direct oversight — missed urgency fees, forgotten premium services, unrecognized VIP signals. Analyze the gap between your golden standard handling and what actually happens when calls are managed without your expertise. Document information that gets lost, miscaptured, or never requested.

Step 4: Map decision trees and caller pathways

Translate your process into visual decision pathways using flow builders or diagramming tools. Many platforms now include drag-and-drop flow builders, making it easier to visualize and create these pathways.

List all possible steps from start to finish, including:

• The greeting and initial options
• Menu navigation and caller actions
• Transfer points and escalation paths
• Edge cases like silent callers or wrong selections
• Call termination or resolution points

Your primary goal should minimize the number of steps a caller must complete to reach each desired outcome. When configuring call flows, conduct dry runs using team members to evaluate the experience.

Map the structure of your phone tree to see every possible path a call might take. Flow architecture should anticipate common scenarios while remaining flexible for edge cases.

A home services flow might start with emergency detection ("Is this an emergency?"), then branch to service area verification, property type classification, and finally appointment scheduling — each step designed to maximize conversion and average ticket value.

Step 5: Build routing logic

Design routing logic that mirrors your priorities:

• VIP identification: Your best clients — those generating the majority of revenue — never wait
• Value-based prioritization: Routing high-value opportunities differently than routine inquiries
• Failsafe mechanisms: Critical situations like legal deadlines, burst pipes, or security breaches receive immediate escalation
• Time-based routing: Adjusting paths based on business hours and urgency levels
• Geographic routing: Directing calls based on service areas and location availability

With these routing priorities established, your system replicates expert judgment automatically across every interaction.

Step 6: Plan for edge cases and language support

The system must accommodate scenarios like Spanish-speaking callers, contacts from outside service areas, or competitive references. Planning for these scenarios during initial design prevents reactive problem-solving.

If target customers are spread across multiple geographies, adding language options, like Spanish, at the beginning improves caller experience. According to HappyFox, 74% of customers are likely to repurchase from a business that offers customer service in their native language.

Consider scenarios where the caller is silent, selects the wrong option, or needs to talk to a human agent. Build these edge cases into your flow from the start.

Step 7: Test and refine

After finalizing the design, integrate it into your communication system and monitor performance. Are customers getting stuck at certain points? Are transfers taking too long? Use real-time feedback to make improvements.

Key testing approaches:

• Sandbox environment testing before going live
• A/B testing different greetings and menu structures
• Regular audits of customer support tickets to identify common queries
• Mystery shopping your own phone system
• Tracking abandonment points and fixing bottlenecks

Testing before implementation reduces costly redesigns and ensures smooth deployment across all customer touchpoints.

9 best practices for call flow design

Beyond the implementation process, certain design principles distinguish effective call flows from problematic ones. The following best practices emerge from analysis of successful implementations across industries.

1. Keep menus simple and limit options

The 5-option rule: More than 5 options per menu level creates cognitive overload. Keep your main menu to 3-5 clear choices.

Progressive disclosure: Start broad, then narrow down through sub-menus only when necessary. For example, start with "Press 1 for emergencies, 2 for scheduled service" before getting into specifics.

2. Always provide an escape route

Making it difficult to reach a human agent creates extreme frustration. Best practice always offers the option to talk to an agent or advisor. Most systems use "0" for operator, and callers expect this option. Make it clear from the start rather than burying it in submenus.

While call flow implementation focuses on efficiency, it should not detract from the human experience all callers expect. Build in options for callers who need immediate human assistance.

3. Handle wait times intelligently

Set expectations early: Provide estimated wait times so callers have expectations established. If the call gets answered quicker, they're delighted. If not, expectations have been set.

Offer callback options: When experiencing long wait times, provide a callback option so callers can maintain their queue position while disconnecting. They enter their phone number, and your system holds their position and triggers an outbound call when it's their turn.

Use comfort messages appropriately: Simple messages like "Your call is important to us" reassure callers they're still connected. Consistent communication is preferable to silence.

4. Scale your approach by business size

Call flow complexity should match your business size and call volume. A 10-person law firm needs different capabilities than a 500-person enterprise with multiple locations. Right-size your approach:

Small business (1-50 employees):

• Single-layer menus with quick agent access
• Basic business hours versus after-hours routing
• Simple CRM integration for caller history
• Mobile app control for real-time adjustments
• Focus on first-call resolution over complex routing

Growing business (50-500 employees):

• Department-based routing with skill matching
• Multiple location support with local presence
• Integration with 3-5 core business systems
• Performance dashboards for monitoring
• A/B testing capabilities for optimization

Enterprise (500+ employees):

• Multi-level IVR with intelligent routing algorithms
• Compliance recording and quality assurance
• Global language support and time zone management
• Full CTI integration across tech stack
• Disaster recovery and redundancy systems
• Real-time analytics and predictive routing

5. Measure what matters

Systematic tracking of call flow performance metrics enables continuous optimization and identifies improvement opportunities. Organizations that consistently monitor First Call Resolution (FCR) and related metrics gain actionable insights that drive operational improvements.

Track these critical metrics:

• First-call resolution: The percentage of inquiries resolved without callback
• Average handle time: Industry benchmark is approximately 10 minutes for complex calls
• Call abandonment rate: Every abandoned call represents lost opportunity
• Customer satisfaction: Post-call surveys provide direct feedback
• Conversion rate: Calls that result in desired outcomes

Following these principles ensures your call flow is functional, easy to use, and maintainable. Well-designed flows reduce wait times, ensure customers reach the right department faster, and boost satisfaction — all while maintaining operational efficiency.

Examples of custom call flows by industry

Each industry has unique requirements. Your call flow should reflect specific needs rather than generic templates. The following examples demonstrate how different sectors optimize call handling for their particular operational challenges.

Legal services: precision intake that protects your practice

Your intake process requires comprehensive accuracy. Every missed detail represents potential liability. Automated statute of limitations screening qualifies cases immediately, with the system calculating deadlines based on case type and incident date, flagging time-sensitive matters.

Structured intake questions capture all critical legal case details without missing key information — parties involved, insurance coverage, prior attorney involvement — everything documented.

Verbatim legal disclaimer protocols trigger automatically when specific criteria are met, delivering compliance statements exactly as your bar association requires.

Priority routing for high-value cases based on case type and potential value ensures major cases don't wait in the queue. After-hours emergency protocols distinguish true legal emergencies (arrests, filing deadlines) from routine matters.

Home services (plumbing/HVAC): emergency triage that never sleeps

When basement flooding occurs at 2 a.m., customers call whoever answers first. Intelligent emergency detection asks specific questions about water damage, gas leaks, or system failures. "Is water actively leaking?" triggers different routing than "My faucet drips."

Dynamic prioritization based on severity means burst pipes jump ahead of routine maintenance automatically. Property detail collection (size, location, problem history) enables accurate dispatch and pricing, with automated systems gathering everything technicians need before they roll.

Service area verification with automatic rerouting for out-of-area calls maintains goodwill through partner referrals even when you can't serve them. Real-time technician scheduling integration books the next available appointment slot directly during the call.

Cleaning services: consistent booking across all service types

Straightforward but thorough processes maximize conversion. Cleaning service type branching (residential, commercial, deep clean, move-out) creates custom pricing paths for each category.

Frequency capture for recurring clients offers automated scheduling options — weekly, bi-weekly, monthly — all handled automatically. Property size and special request collection enables accurate quotes without callbacks. Bilingual support with automatic language detection serves Spanish-speaking customers seamlessly — no "press 2 for Spanish" delays. Instant CRM updates capture service preferences and client history for personalized service.

Cybersecurity: secure intake for sensitive situations

When breach incidents occur, every second counts. Threat level assessment through structured questioning about breach indicators enables automated systems to identify severity immediately.

Compliance checkpoint verification handles regulated industries, with healthcare, finance, and government clients each requiring specific protocols. Secure information collection protocols ensure sensitive data never gets stored in voicemail — everything encrypted and protected.

VIP client identification triggers immediate escalation to senior consultants, ensuring your biggest clients receive white-glove treatment. Business hours versus emergency response routing operates based on incident severity, not just time of day.

These industry-specific implementations demonstrate how call flow design adapts to unique operational requirements while maintaining consistent quality standards.

Call flow implementation next steps

The best call flow design remains theoretical until tested against actual caller behavior. Recording a few calls reveals which qualifying questions get skipped, where urgency signals go unrecognized, and what information consistently gets miscaptured.

AI receptionists execute these flows without deviation — asking every question, following every branch, capturing every detail. That consistency exposes whether your process design actually works or just looks good on paper.

Learn more about how AI Receptionists execute call flows in practice.
